Final word on HDDs and B-Trees vs BSTs

Chronicles of DB Indexes - Part 6

Final article on BSTs, B-Trees and HDDs. Next week I'll be focusing more on difference between B-Trees and B+Trees, Clustered & Heap tables, SARGable predicates and ways to navigate aroung trees.

(Fun fact: most of literature refers to B+Trees but writes B-Trees. No clue why. They are structured pretty much differently!)

But let's focus on these two at hand. And I'm publishing two because I got bored of diving deep into HDD + B-Tree vs BST story any more :)

I do hope that it's clear by now that the whole idea of B-Trees is to pack as much data as possbile, so that HDD crane has to do as few movements as possible.

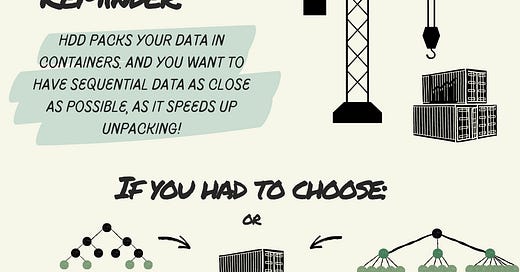

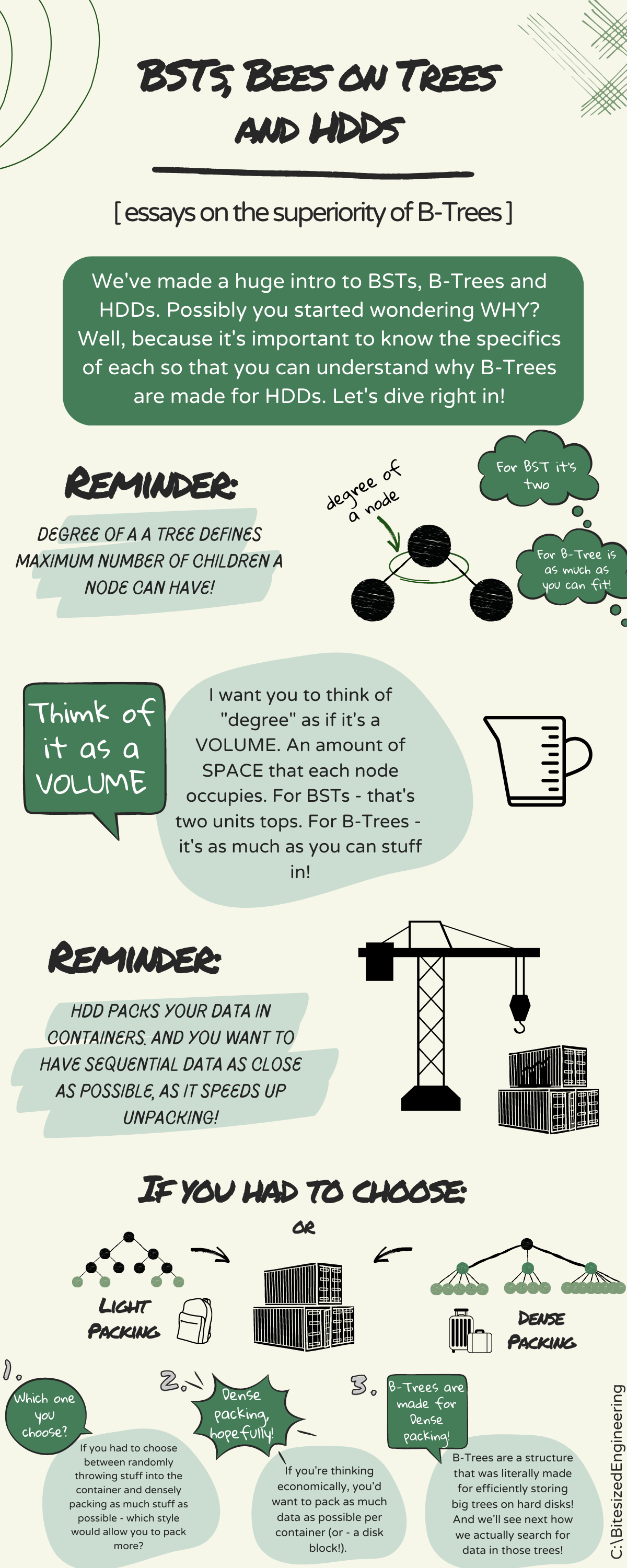

Well, just in case it's NOT 100% clear, hereby I provide these two additional graphic that should make it crystal clear :)
